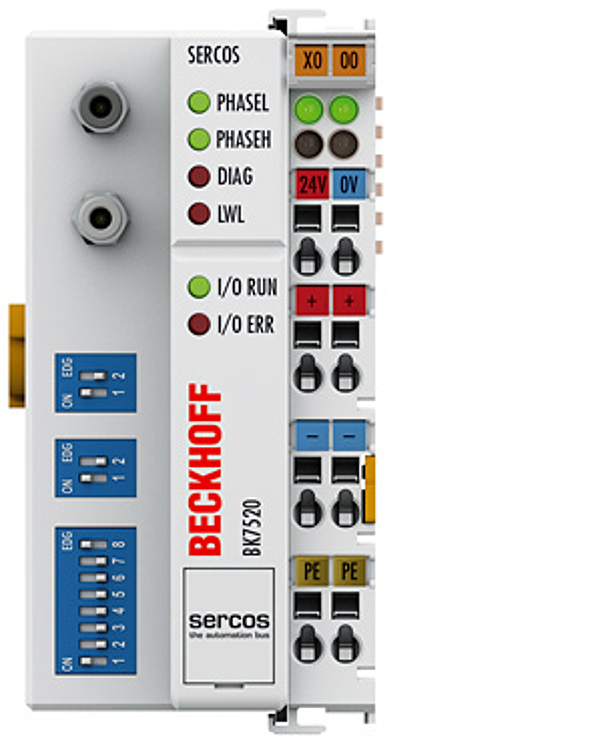

Beckhoff BK7520
BK7520 | SERCOS II Bus Coupler
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The BK7520 Bus Coupler connects the SERCOS bus system with the electronic terminal blocks, which can be extended in modular fashion. One unit consists of one Bus Coupler, any number from 1 to 64 terminals and one end terminal. The BK7520 allows, with the K-bus extension technology, the connection of up to 255 Bus Terminals to one Bus Coupler. The Bus Coupler recognises the connected terminals and automatically generates the affiliations of the inputs/outputs to the bytes of the process image.
Technical parameters
| Number of I/O stations: | 254 |
| Number of I/O points: | depending on controller |
| Data transfer medium: | 1,000 µm plastic fibre optic |
| Distance between stations: | 40 m plastic fibre optic |
| Data transfer rates: | 2/4/8/16 Mbaud |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
