BK7350

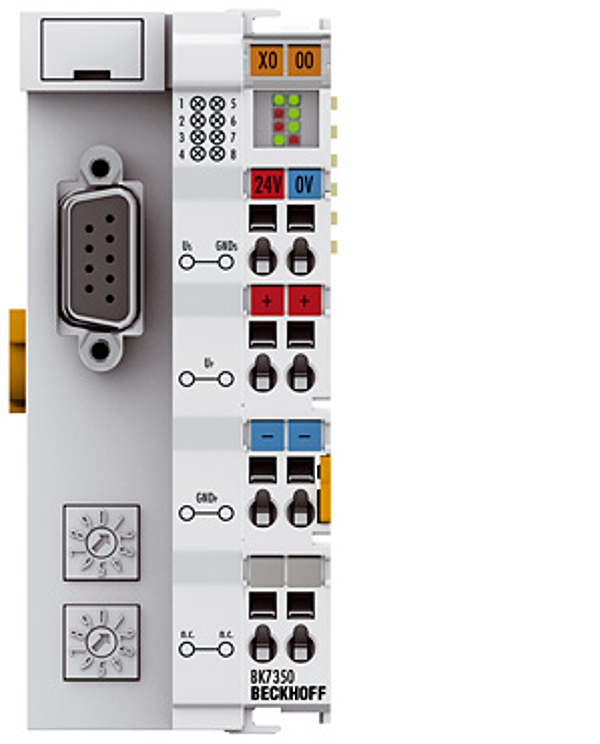

BK7350 | Modbus Bus Coupler
The BK7350 “Compact” Bus Coupler with compact housing connects the Modbus bus system to the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1 to 64 terminals and one end terminal. With the K-bus extension, up to 255 Bus Terminals can be connected.
Number of I/O stations: | 99 |
Number of I/O points: | depending on controller |
Data transfer medium: | screened, twisted copper cable 2 x 0.25 mm² (RS485) |
Max. cable length: | 1,200 m |
Data transfer rates: | 150 baud…38,400 baud |
I/O communication types: | read/write access, optionally bit oriented or word oriented |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
