BK7150

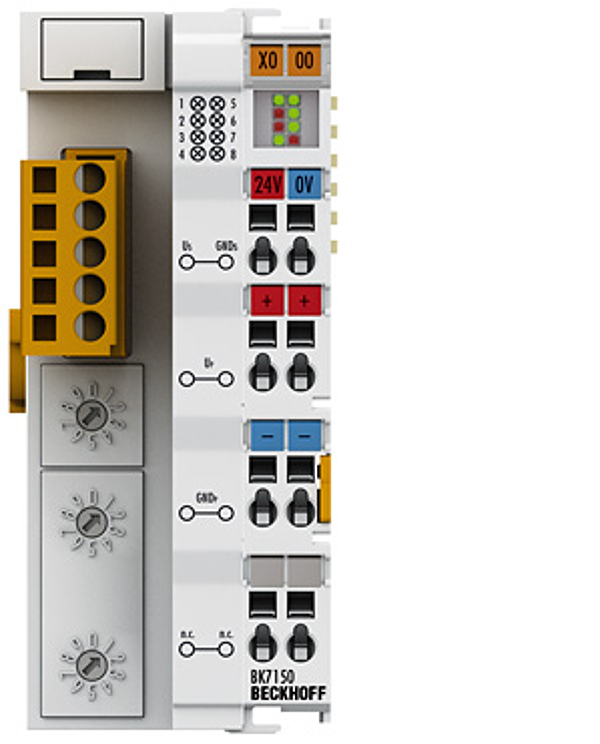

BK7150 | CC-Link “Compact” Bus Coupler
The “Compact” Bus Coupler BK7150 connects the CC-Link system to the electronic terminal blocks, which can be extended in modular fashion. One unit consists of the Bus Coupler, any number of up to 64 terminals and one end terminal. The K-bus extension technology allows the connection of up to 255 spatially distributed Bus Terminals to one Bus Coupler.
Number of I/O stations: | 64 (per link) |
Number of I/O points: | depending on controller |
Data transfer medium: | shielded 3-core, twisted pair cable |
Max. cable length 1,200 m: | 1,200 m 900 m 400 m 160 m 100 m 900 m |
1,200 m: | 900 m |
Data transfer rates 156 kbaud: | 156 kbaud 625 kbaud 2.5 Mbaud 5 Mbaud 10 Mbaud 625 kbaud |
156 kbaud: | 625 kbaud |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
