BK7000

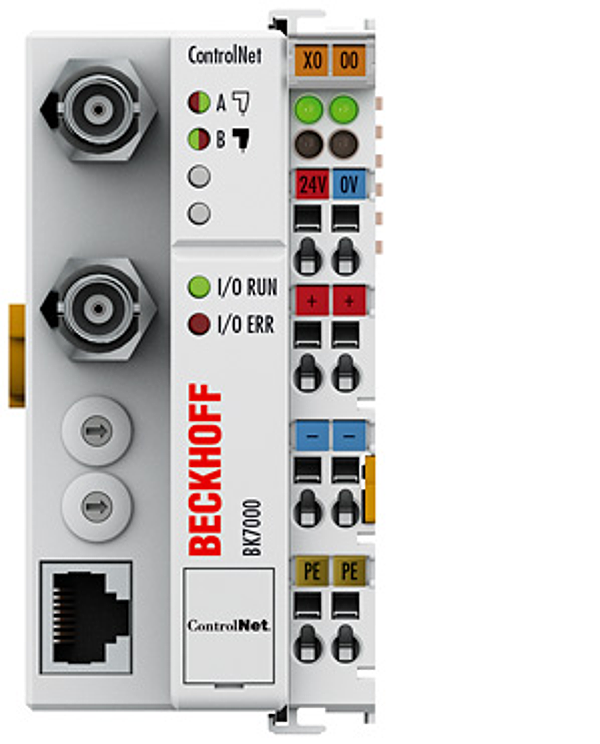

BK7000 | ControlNet Bus Coupler
The Bus Coupler BK7000 connects the ControlNet bus system with the electronic terminal blocks, which can be extended in modular fashion. One unit consists of one Bus Coupler, any number from 1 to 64 terminals and one end terminal.
Number of I/O stations: | 99 (per link) |
Number of I/O points: | depending on controller |
Data transfer medium: | coax cable RG-6, optionally redundant |
Max. cable length: | 250…1,000 m per segment |
Data transfer rates: | 5 Mbaud |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
