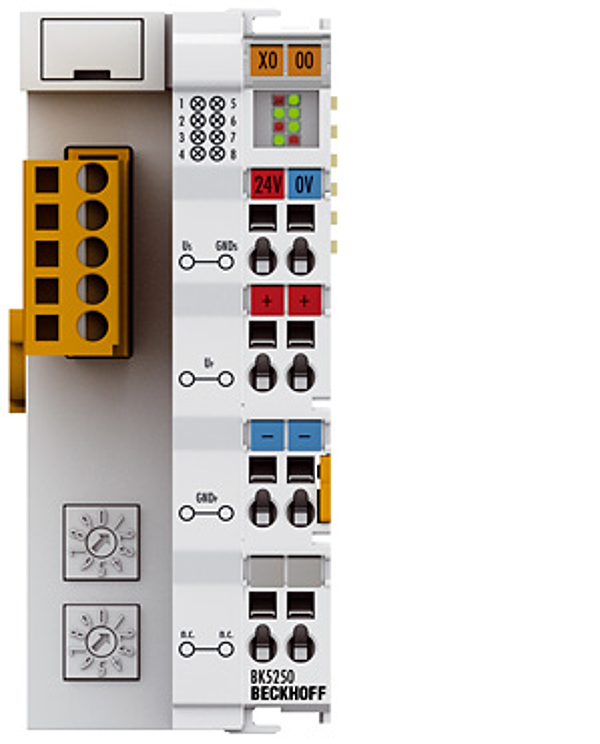

Beckhoff BK5250
BK5250 | DeviceNet “Compact” Bus Coupler
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The “Compact” Bus Coupler BK5250 for DeviceNet extends the Beckhoff Bus Terminal system by a cost-optimised version in a compact housing. Up to 64 Bus Terminals are supported; with the terminal bus extension, up to 255 Bus Terminals can be connected. The DeviceNet Bus Coupler offers automatic baud rate detection up to 500 kbaud and two address selection switches for address assignment. A 5-pin connector for the fieldbus connection is included in the scope of supply. Optionally, the ZS1052-3000 connector with integrated terminating resistor can be connected.
Technical parameters
| Number of I/O stations: | 64 |
| Data transfer medium: | screened, twisted copper wire with power supply, 5-pin |
| Max. cable length 500 m: | 500 m 250 m 100 m 250 m |
| 500 m: | 250 m |
| Data transfer rates 125 kbaud: | 125 kbaud 250 kbaud 500 kbaud 250 kbaud |
| 125 kbaud: | 250 kbaud |
| Operating modes: | bit strobe, polling, cyclic, change of state (COS) |
| DeviceNet type: | communications adapter |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
