BK5210

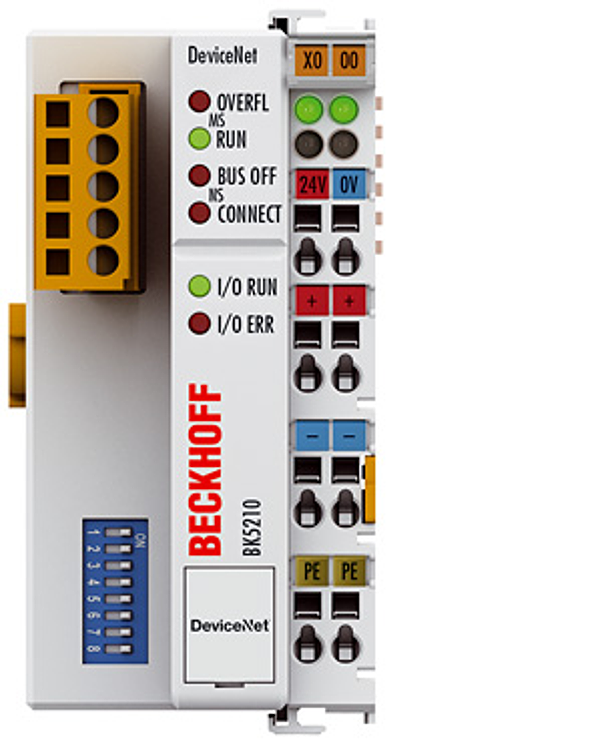

BK5210 | DeviceNet Bus Coupler
The BK5210 "Economy" Bus Coupler connects the DeviceNet bus system to the electronic terminal blocks, which can be extended in modular fashion. One unit consists of one Bus Coupler, any number of up to 64 terminals and one end terminal. The BK5210 permits particularly economical creation of peripheral interfacing connections. Up to 64 digital input/output terminals can be connected.
Number of I/O stations: | 64 |
Data transfer medium: | screened, twisted copper wire with power supply, 5-pin |
Max. cable length 500 m: | 500 m 250 m 100 m 250 m |
500 m: | 250 m |
Data transfer rates 125 kbaud: | 125 kbaud 250 kbaud 500 kbaud 250 kbaud |
125 kbaud: | 250 kbaud |
Operating modes: | bit strobe, polling, cyclic, change of state (COS) |
DeviceNet type: | communications adapter |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
