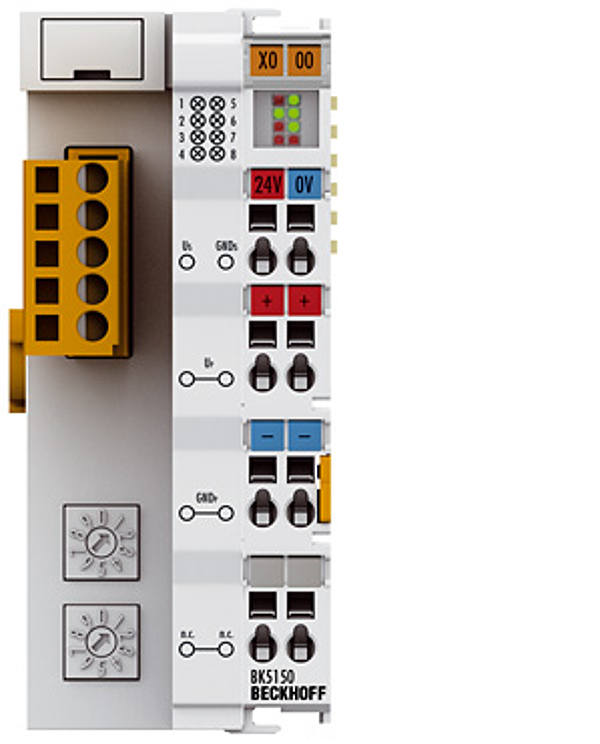

Beckhoff BK5150
BK5150 | CANopen “Compact” Bus Coupler
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The “Compact” Bus Coupler BK5150 for CANopen extends the Beckhoff Bus Terminal system by a cost-optimised version in a compact housing. Up to 64 Bus Terminals are supported; with the terminal bus extension, up to 255 Bus Terminals can be connected. The CANopen Bus Coupler offers automatic baud rate detection up to 1 Mbaud and two address selection switches for address assignment. A 5-pin connector for the fieldbus connection is included in the scope of supply. Optionally, the ZS1052-3000 connector with integrated terminating resistor can be connected.
Technical parameters
| Number of I/O stations: | 64 (255 with K-bus extension) |
| Number of I/O points: | depends on the structure |
| Data transfer medium: | screened, twisted copper cable, 2 x signal, 1 x ground (recommended) |
| Max. cable length 5,000 m: | 5,000 m 2,500 m 1,000 m 500 m 250 m 100 m 40 m 2,500 m |
| 5,000 m: | 2,500 m |
| Data transfer rates 10 kbaud: | 10 kbaud 20 kbaud 50 kbaud 100/125 kbaud 250 kbaud 500 kbaud 1,000 kbaud 20 kbaud |
| 10 kbaud: | 20 kbaud |
| PDO modes: | synchron, cyclic, event driven, polling |
