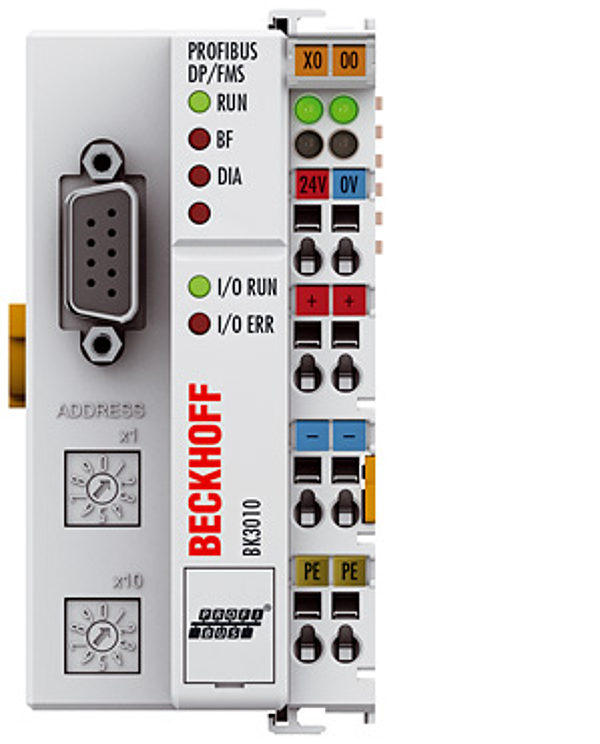

Article image BK3010

Beckhoff BK3010

BK3010 | PROFIBUS Bus Coupler

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The BK3010 “Economy” Bus Coupler connects the PROFIBUS system to the electronic terminal blocks, which can be extended in modular fashion. One unit consists of the Bus Coupler, any number of up to 64 terminals and one end terminal. The BK3010 permits particularly economical creation of peripheral interfacing connections. Up to 64 digital input/output terminals can be connected.

Technical parameters

Number of I/O stations: 100 with repeater
Number of I/O points: approx. 6,000, depending on the master
Data transfer medium: shielded copper cable, 2 x 0.25 mm²
Max. cable length 1,200 m: 1,200 m 1,000 m 400 m 200 m 100 m 1,000 m
1,200 m: 1,000 m
Data transfer rates 9.6/19.2/ 93.75 kbaud: 9.6/19.2/ 93.75 kbaud 187.5 kbaud 500 kbaud 1,500 kbaud …3, 6, 12 Mbaud 187.5 kbaud
9.6/19.2/ 93.75 kbaud: 187.5 kbaud

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
