Article image BC9020

Beckhoff BC9020

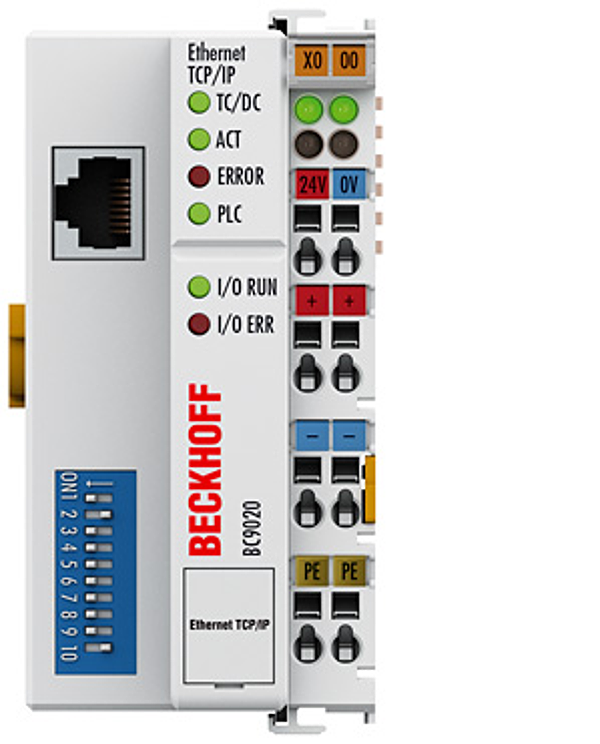

BC9020 | Ethernet TCP/IP “Economy plus” Bus Terminal Controller

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The BC9020 Bus Terminal Controller is a Bus Coupler with integrated PLC functionality and has a bus interface for Ethernet. It is an intelligent slave and can be used as decentralised intelligence in the Ethernet system. In conjunction with the K-bus extension, the “Economy plus” controller enables connection of up to 255 Bus Terminals to a controller.

Technical parameters

Programming: via TwinCAT and programming interface or Ethernet
Program memory: 128 kbytes
Data memory: 128 kbytes
Remanent data: 2 kbytes
Persistent data: 1 kbyte
Runtime system: 1 PLC task
PLC cycle time: approx. 1 ms for 1,000 instructions (without I/O cycle, K-bus)
Programming languages: IEC 61131-3 (IL, LD, FBD, SFC, ST)
Online change: yes
Up/down load code: yes/yes

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
