Beckhoff BC9000
BC9000 | Ethernet TCP/IP Bus Terminal Controller
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description

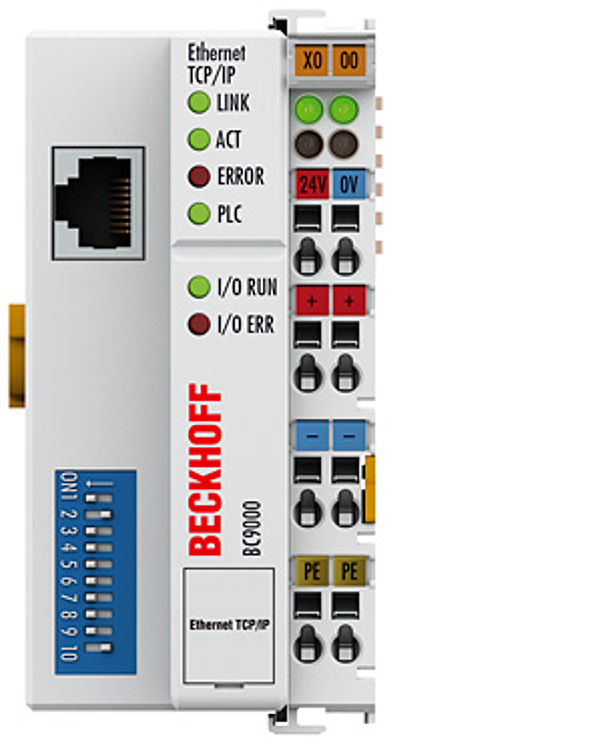

The BC9000 Bus Terminal Controller is a Bus Coupler with integrated PLC functionality and has a fieldbus interface for Ethernet. It is an intelligent slave that can be used as a non-central intelligence in the Ethernet system. One unit consists of the Bus Terminal Controller, any number of terminals between 1 and 64, and a bus end terminal.
Technical parameters
| Programming: | via TwinCAT and programming interface or Ethernet |
| Program memory: | 64/96 kbytes |
| Data memory: | 64/128 kbytes |
| Remanent data: | 4080 bytes |
| Runtime system: | 1 PLC task |
| PLC cycle time: | approx. 1.5 ms for 1,000 instructions (without I/O cycle, K-bus) |
| Programming languages: | IEC 61131-3 (IL, LD, FBD, SFC, ST) |
| Online change: | – |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
