GJL1213001R1016
BC6-30-01-16

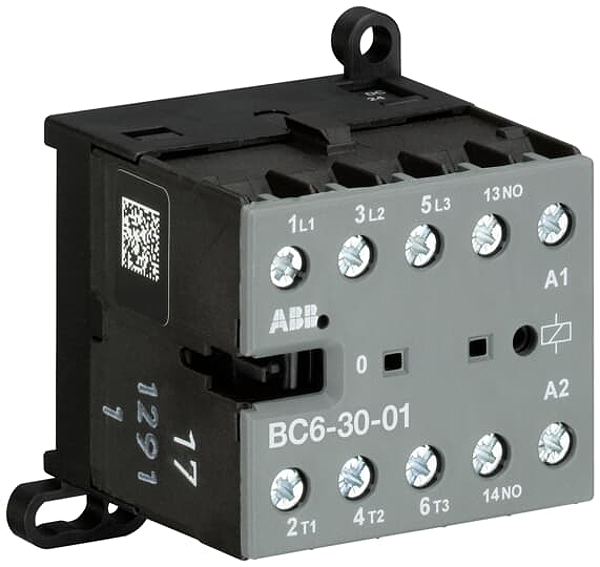

BC6-30-01-16 Mini Contactor 48VDC
The BC6-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting.
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.18 kg |
Length: | 0.0465 m |
Width: | 0.0525 m |
Height: | 0.0575 m |
