ABB 2CPX077803R9999

2V0-150

2V0-150 Dist. Board OH0 2PW 150mm

Description

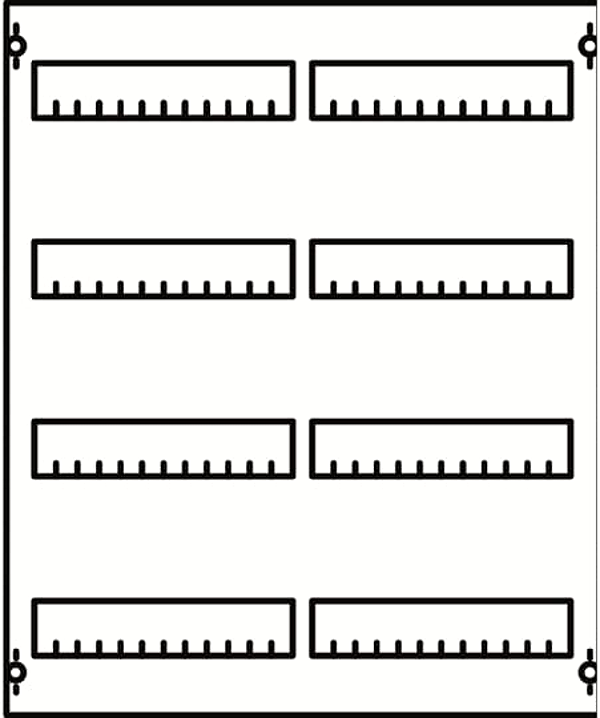

Interior fitting system, Distribution panels, mounted on EDF-Profile, for DIN rail mounting devices, Ratchet unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm, distribution panels or combinations must have the same grid units as the cabinets, in which they are installed. For floor standing and switch gear cabinets, two panels or combinations must be installed next to each other. The EDF profile rails are included in the scope of delivery.
