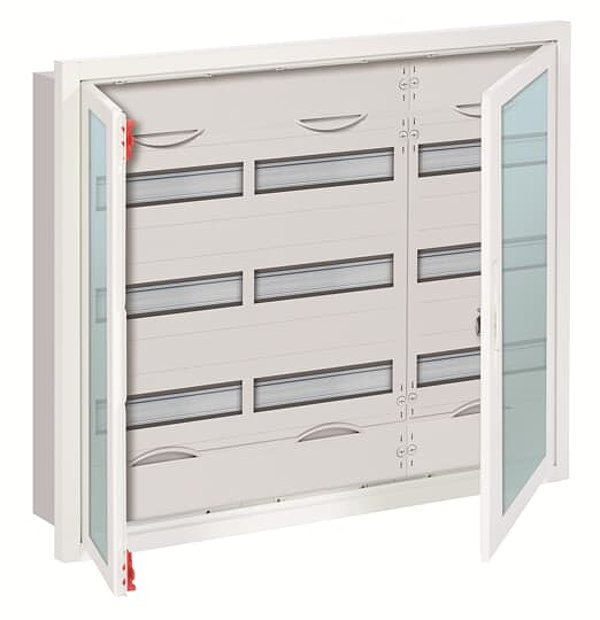

Article image 2CPX071724R9999

ABB 2CPX071724R9999

U43TR3

U43TR3 DistR Board 3R w.transp.door

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Compact distribution boards, series U, partly assembled cabinet, for the internal use, with closed doorframe and door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP31, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, transparent door, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 130 degree, door hinge right and left, cable entry on top via nippel flange included, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 684 x 810 x 120, Shutter frame dimensions in mm (H x W x D): 694 x 854 x 27, Ratchet unit 4 GU, panel width 3, 3-rows, Space units 108, Row distance in mm: 150, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617717249
Weight: 18.97 kg
Length: 0.165 m
Width: 0.81 m
Height: 0.72 m
