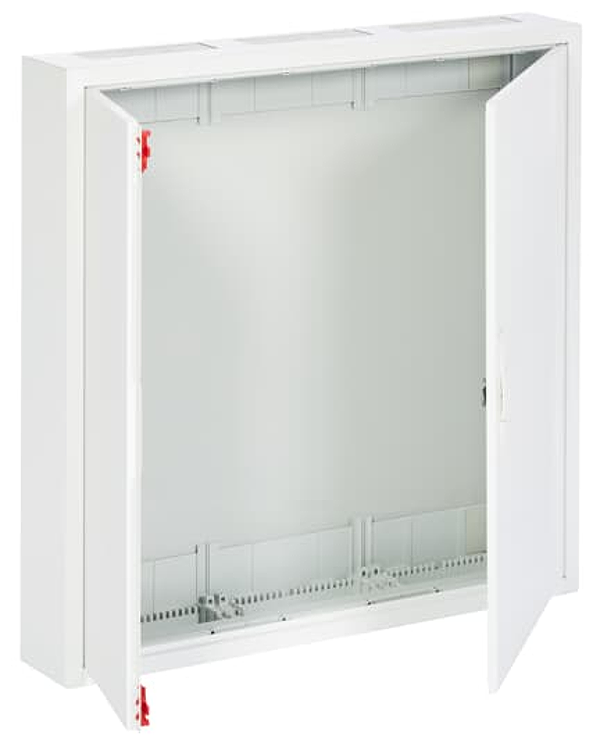

Article image 2CPX067705R9999

ABB 2CPX067705R9999

TA53

TA53 Dist. Board AP IP43 TSK

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Compact distribution boards, series TA, empty cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP43, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 130 degree, door hinge right and left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 824 x 824 x 140, Ratchet unit 5 GU, panel width 3, Space units 180, without N/PE Quick-terminal, cable fastening rail integrated, pre-assembled for installation of modules and CombiLine Modules

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617677055
Weight: 19.26 kg
Length: 0.145 m
Width: 0.824 m
Height: 0.825 m
