2CPX062761R9999
ZK175G

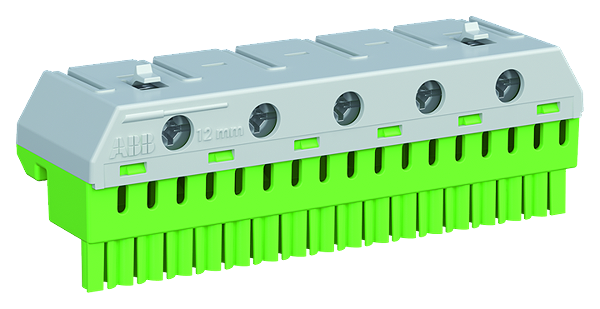

ZK175G PE-termin.blocks 17x4+5x25qmm
PE quick plug-in terminal for plug-in carrier, assembly without tools using simple plug-in and latching equipment, clear color-coding: PE = yellow-green, flexible terminal system, number of terminals: 17 x 1.5 - 4 mm² (spring clamp technology) + 5 x 2.5 to 25 mm² (screw connection technology), external dimensions H x W x D in mm: 32 x 98 x 31 mm, simple labelling of the terminal points (DIN VDE 0603 Part 1) with pre-printed, self-adhesive number strips.
ECCN: | |
Country of Origin: | NL |
EAN: | 4011617627616 |
Weight: | 0.09 kg |
Length: | 0.16 m |
Width: | 0.098 m |
Height: | 0.03 m |
