Article image 2CPX062758R9999

ABB 2CPX062758R9999

ZK82G

ZK82G PE-termin.blocks 8x4+2x25qmm

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

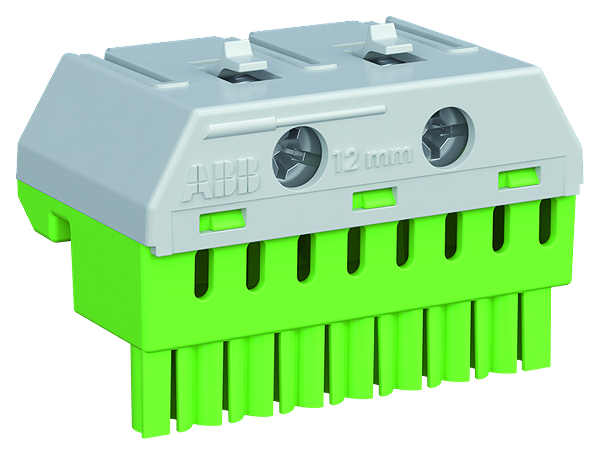

PE quick plug-in terminal for plug-in carrier, assembly without tools using simple plug-in and latching equipment, clear color-coding: PE = yellow-green, flexible terminal system, number of terminals: 8 x 1.5 - 4 mm² (spring clamp technology) + 2 x 2.5 to 25 mm² (screw connection technology), external dimensions H x W x D in mm: 32 x 49 x 31 mm, simple labelling of the terminal points (DIN VDE 0603 Part 1) with pre-printed, self-adhesive number strips.

Logistic parameters

ECCN:
Country of Origin: NL
EAN: 4011617627586
Weight: 0.05 kg
Length: 0.15 m
Width: 0.049 m
Height: 0.03 m
