ABB 2CPX062756R9999

ZK206B

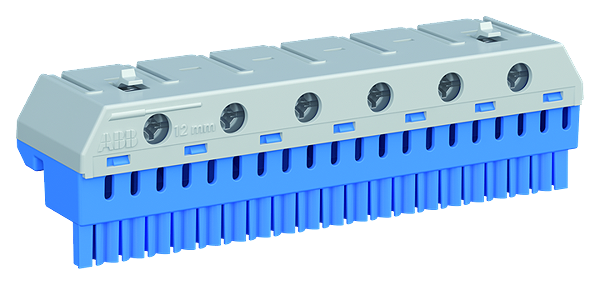

ZK206B N-terminal block.20x4+6x25qmm

Description

N quick plug-in terminal for plug-in carrier, assembly without tools using simple plug-in and latching equipment, clear color-coding: N = blue, flexible terminal system for multiple N-circuits, number of terminals: 20 x 1.5 - 4 mm² (spring clamp technology) + 6 x 2.5 to 25 mm² (screw connection technology), external dimensions H x W x D in mm: 32 x 115 x 31 mm, simple labelling of the terminal points (DIN VDE 0603 Part 1) with pre-printed, self-adhesive number strips.
