Article image 2CPX062751R9999

ABB 2CPX062751R9999

ZK51B

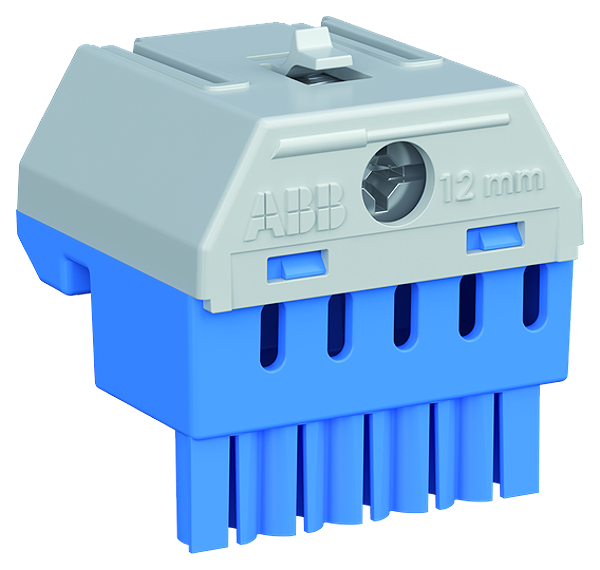

ZK51B N-terminal blocks 5x4+1x25qmm

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

N quick plug-in terminal for plug-in carrier, assembly without tools using simple plug-in and latching equipment, clear color-coding: N = blue, flexible terminal system for multiple N-circuits, number of terminals: 5 x 1.5 - 4 mm² (spring clamp technology) + 1 x 2.5 to 25 mm² (screw connection technology), external dimensions H x W x D in mm: 32 x 32 x 31 mm, simple labelling of the terminal points (DIN VDE 0603 Part 1) with pre-printed, self-adhesive number strips.

Logistic parameters

ECCN:
Country of Origin: NL
EAN: 4011617627517
Weight: 0.03 kg
Length: 0.15 m
Width: 0.032 m
Height: 0.03 m
