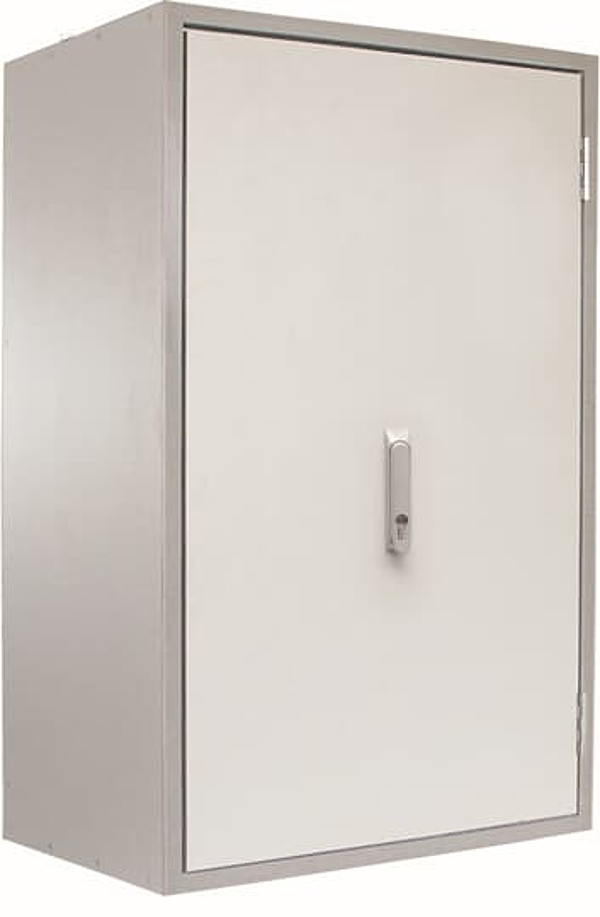

Article image 2CPX043388R9999

ABB 2CPX043388R9999

1/3AF303

1/3AF303 Wall cabinet fire prot.90min.

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Fire resistance - floorstanding, series AF, empty cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP44, material according to A2 — not flammable, EN 13501-1, fire resistance 90 min tested according to , Reduce fire load 90 min in line with , Maintain functionality 90 min in line with , Rated operational voltage 400V AC 50/60 Hz, surface-coated, in RAL 7035, enclosure out of non flammable material, single-leaf door, door out of non flammable material, with Swivel handle with half cylinder, door opening angle 180 degree, door hinge right, cable entry on top via fire stop cable entry, on bottom via fire stop cable entry, dimensions in mm (H x W x D): 1198 x 398 x 349, Ratchet unit 7 GU, Overall height 3, panel width 1, Space units 84, pre-assembled for installation with Modules, Combi-Sets, CombiLine-Module on EDF-mounting frame

Logistic parameters

ECCN:
Country of Origin:
EAN: 4011617433880
Weight: 96.00 kg
Length: 0.349 m
Width: 0.398 m
Height: 1.198 m
