ABB 2CPX042262R9999

MBD200E

MBD200E Set for fuse switch d ABB 2PW

Description

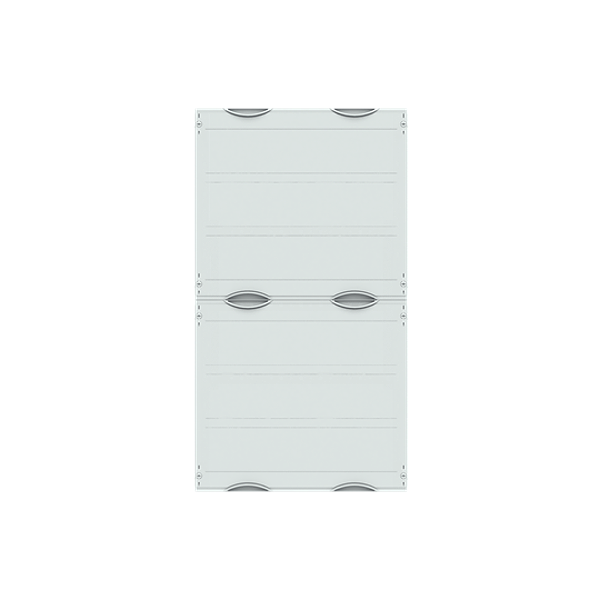

Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 185 mm NH-disconnector, Ratchet unit 6 GU = 900 mm, panel width 2 = 500 mm, 144 Space units, , usuable width of 400 mm, unequipped for the installation of 8 NH-fuse disconnector NH1 till NH3, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX522, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
