ABB 2CPX042257R9999

MBD300

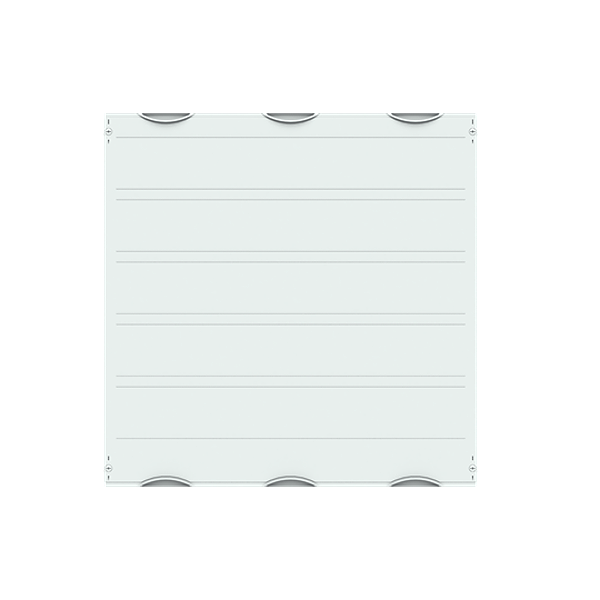

MBD300 Set for fuse switch d ABB 3PW

Description

Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 185 mm NH-disconnector, Ratchet unit 5 GU = 750 mm, panel width 3 = 750 mm, 180 Space units, , usuable width of 600 mm, unequipped for the installation of 12 NH-fuse disconnector NH1 till NH3, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX522, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
