2CPX042251R9999
MD200EB
MD200EB Mod w fuse switch dis ABB 2PW

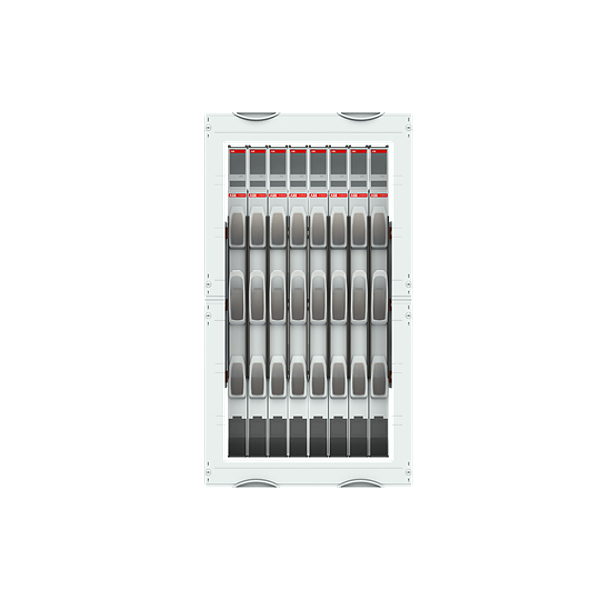

Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 185 mm NH-disconnector, Ratchet unit 6 GU = 900 mm, panel width 2 = 500 mm, 120 Space units, , usuable width of 400 mm, equipped with 8 NH-fuse disconnector NH00, Equipment manufacturer: ABB, InLine II ZHBM + EFM, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX522, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 275 mm
ECCN: | |
Country of Origin: | XX |
EAN: | 4011617422518 |
Weight: | 27.73 kg |
Length: | 0.50 m |
Width: | 0.50 m |
Height: | 1.015 m |
