Article image 2CPX042246R9999

ABB 2CPX042246R9999

MD200HB

MD200HB Mod w fuse switch dis ABB 2PW

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

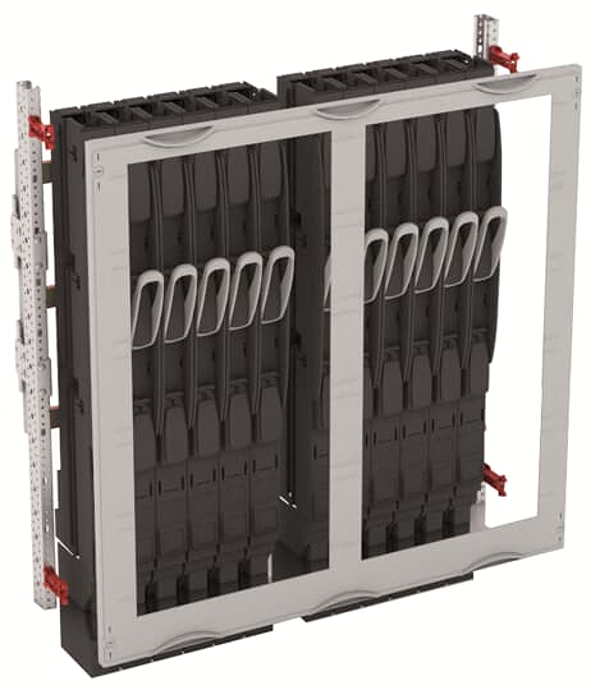

Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 185 mm NH-disconnector, Ratchet unit 5 GU = 750 mm, panel width 2 = 500 mm, 120 Space units, , usuable width of 400 mm, equipped with 8 NH-fuse disconnector NH00, Equipment manufacturer: ABB, InLine II ZHBM, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX522, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 275 mm

Logistic parameters

ECCN:
Country of Origin: XX
EAN: 4011617422464
Weight: 18.55 kg
Length: 0.50 m
Width: 0.50 m
Height: 0.87 m
