2CPX042116R9999
MBD152

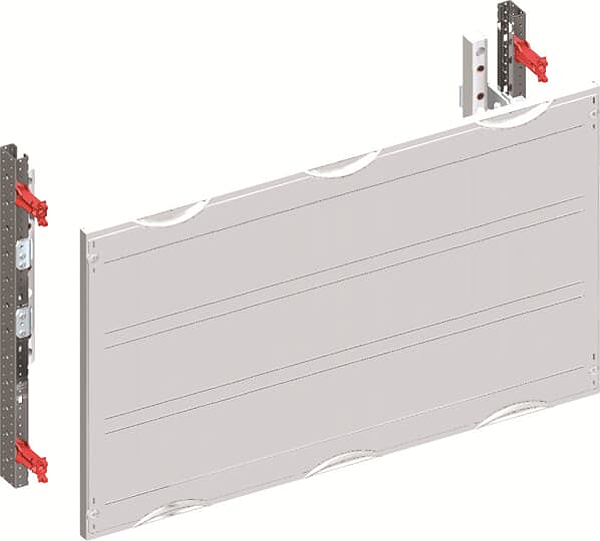

MBL162 Set HRC Switch-Strip Module
Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 100 mm NH00-disconnector, Ratchet unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, , usuable width of 150 mm, unequipped for the installation of 3 NH-fuse disconnector NH00, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX520, Busbar center distance: 100 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 215 mm
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617421160 |
Weight: | 1.70 kg |
Length: | 0.45 m |
Width: | 0.25 m |
Height: | 0.051 m |
