ABB 2CPX042114R9999

MD252

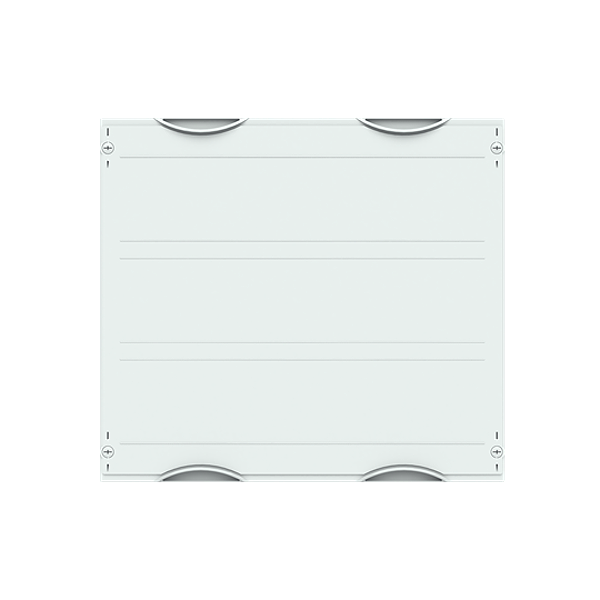

ML262 HRC Switch-Strip Module

Description

Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 100 mm NH00-disconnector, Ratchet unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, , usuable width of 400 mm, unequipped for the installation of 8 NH-fuse disconnector NH00, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX520, Busbar center distance: 100 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 215 mm
