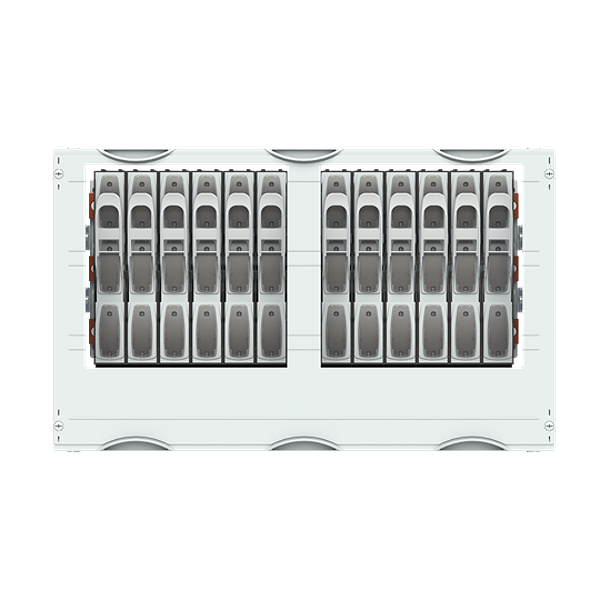

Article image 2CPX042112R9999

ABB 2CPX042112R9999

MD352B

ML362B HRC Switch-Strip Module ABB

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 100 mm NH00-disconnector, Ratchet unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, , usuable width of 600 mm, equipped with 12 NH-fuse disconnector NH00, Equipment manufacturer: ABB, InLine II ZLBM, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX520, Busbar center distance: 100 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm

Logistic parameters

ECCN:
Country of Origin: XX
EAN: 4011617421122
Weight: 15.24 kg
Length: 0.75 m
Width: 0.75 m
Height: 0.45 m
