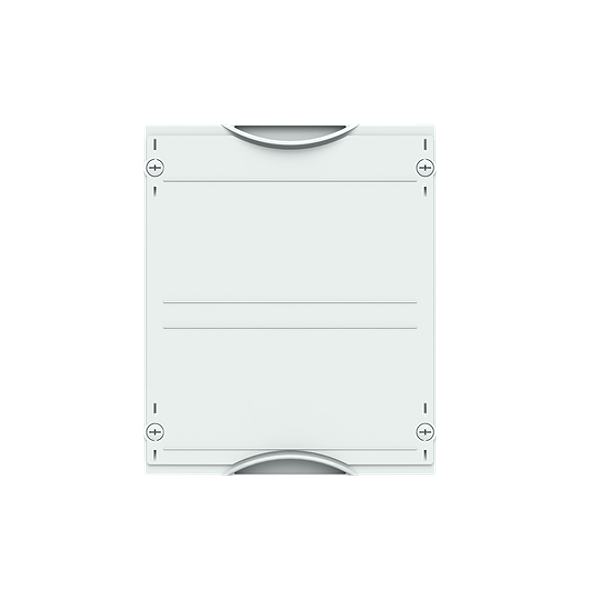

Article image 2CPX041837R9999

ABB 2CPX041837R9999

MBK112

MBK112 Set Terminal Block Mod.vertic

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting module, CombiLine, Modular distribution panel not assembled, for Vertical terminals, Ratchet unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, assembled with DIN rail 35 x 15 mm with perforation for wire holders, Stepless adjustable via mounting bracket, usuable depth of 66 mm up to 113 mm, usuable height of 244 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617418375
Weight: 3.41 kg
Length: 0.45 m
Width: 0.25 m
Height: 0.051 m
