ABB 2CPX041830R9999

MBR103

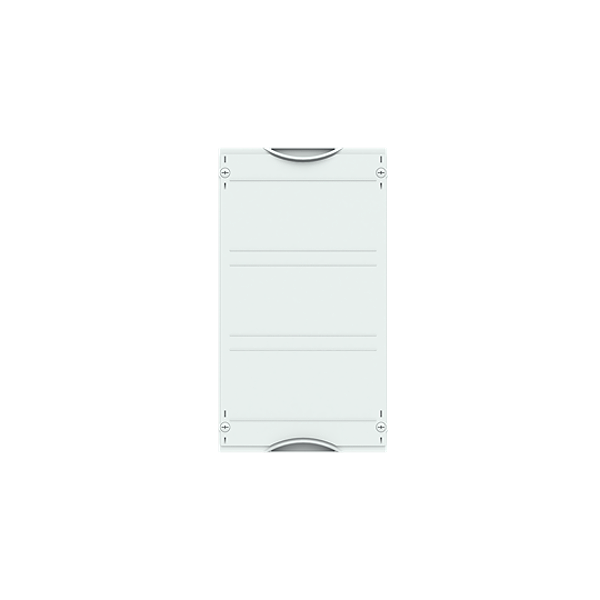

MBR103 Set Busbar Module

Description

Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 60 mm horizontal, Ratchet unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, , usuable width of 165 mm, unequipped for the installation of D0- and NH-fuse switch disconnector or fuse holder element D02, E27, E33, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX146, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
