ABB 2CPX041805R9999
MBA630ALA

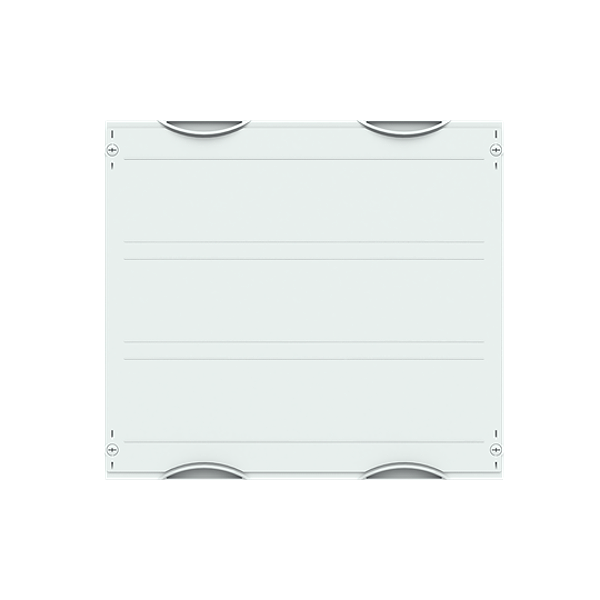

MBA630ALA Set Switch-Disconn.-Module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Interior fitting module, CombiLine, Modular distribution panel not assembled, for Switch disconnector OT not connected, Ratchet unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, unequipped for the installation of 1 NH-switch disconnector OT630E, for busbar system -pole, rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | 4011617418054 |
| Weight: | 3.37 kg |
| Length: | 0.45 m |
| Width: | 0.50 m |
| Height: | 0.105 m |
