Article image 2CPX041803R9999

ABB 2CPX041803R9999

MBA160ALA

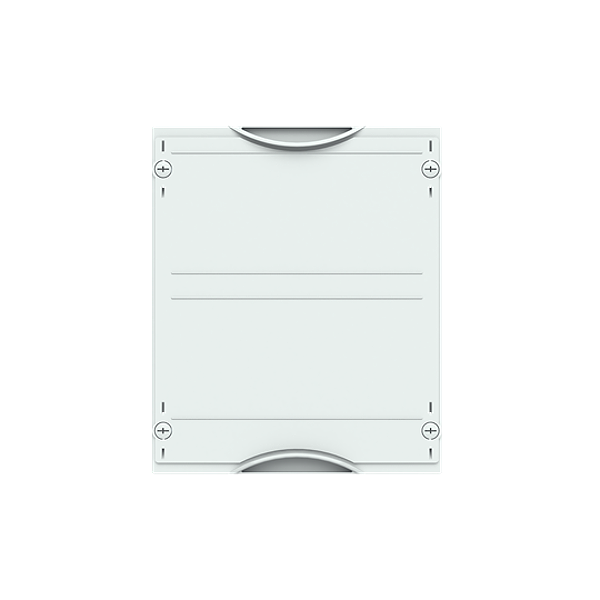

MBA160ALA Set Switch-Disconn.-Module

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting module, CombiLine, Modular distribution panel not assembled, for Switch disconnector OT not connected, Ratchet unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, , usuable width of 216 mm, unequipped for the installation of 1 NH-switch disconnector OT160G, for busbar system -pole, rated current maximum 160 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617418030
Weight: 0.69 kg
Length: 0.45 m
Width: 0.25 m
Height: 0.051 m
