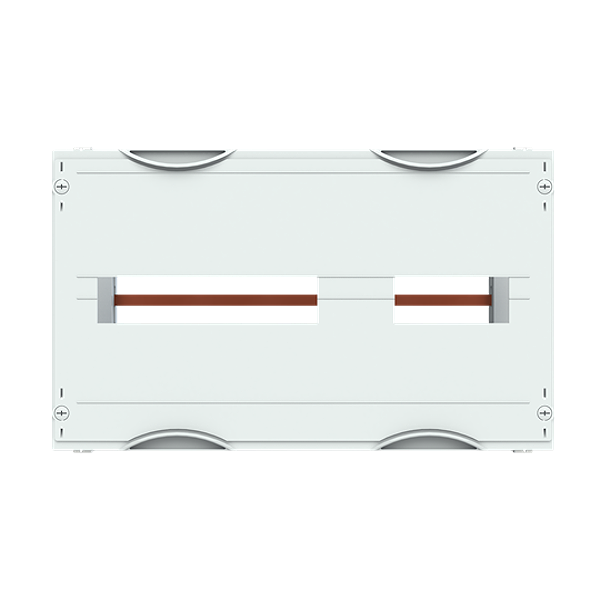

Article image 2CPX041793R9999

ABB 2CPX041793R9999

MBH250

MBH250 Set Modular Panels

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 40 mm for S700, Ratchet unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, , usuable width of 210 mm, unequipped for the installation of selective main circuit breaker S700, for busbar system 1.4-pole, Busbar alignment: horizontal, with busbar holders ZB5, Busbar center distance: 40 mm, for maximum 4 Cu busbars, (busbars must be ordered separately), rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617417934
Weight: 1.89 kg
Length: 0.45 m
Width: 0.50 m
Height: 0.055 m
