Article image 2CPX041472R9999

ABB 2CPX041472R9999

MA160ALXB

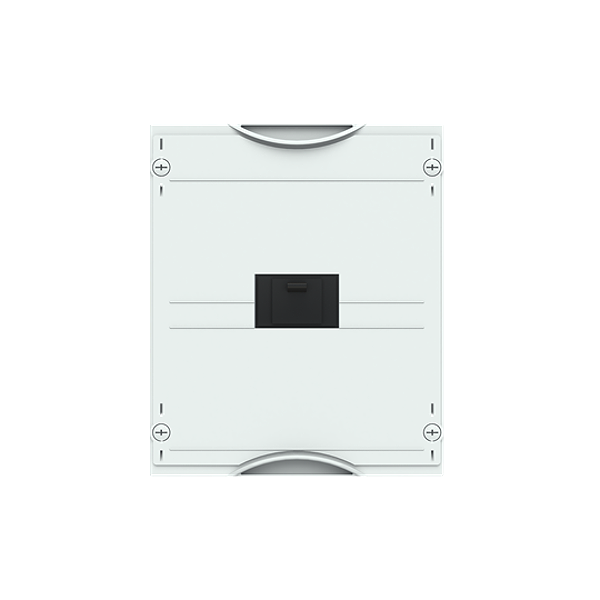

MA160ALXB Breaker Module Tmax XT 160A

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax connected, Ratchet unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, equipped with 1 MCCB XT1, Equipment manufacturer: ABB, Tmax XT, for busbar system 3-pole, rated current maximum 160 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617414728
Weight: 1.81 kg
Length: 0.30 m
Width: 0.25 m
Height: 0.20 m
