ABB 2CPX041425R9999

MBN269

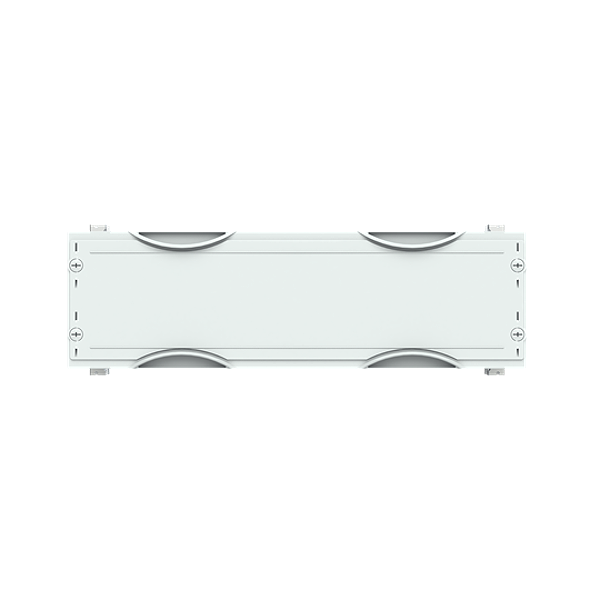

MBN269 Set N/PE- Module

Description

Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals horizontal, Ratchet unit 1 GU = 150 mm, panel width 2 = 500 mm, 24 Space units, unequipped for the installation of , for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX518, Busbar center distance: 40 mm, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 320 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
