2CPX041421R9999
MN369

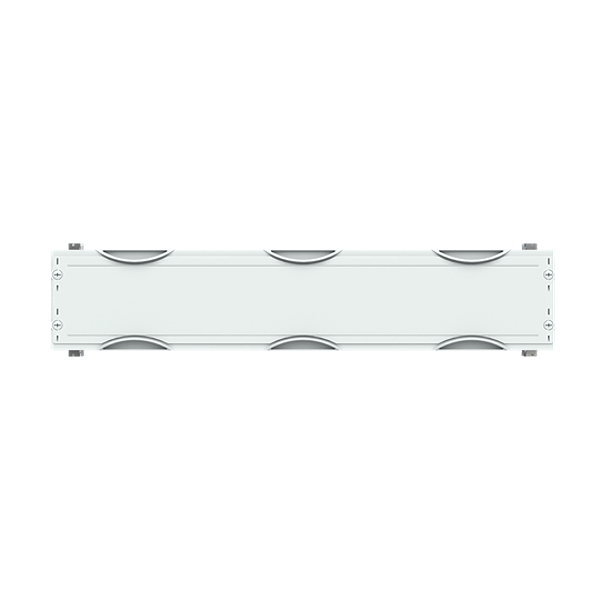

MN369 N+PE Busbar Module
Interior fitting module, CombiLine, mounted in cabinet, for N/PE busbar and terminals horizontal, Ratchet unit 1 GU = 150 mm, panel width 3 = 750 mm, 36 Space units, unequipped for the installation of , for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX518, Busbar center distance: 40 mm, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 320 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617414216 |
Weight: | 0.89 kg |
Length: | 0.15 m |
Width: | 0.75 m |
Height: | 0.20 m |
