2CPX041416R9999
MR303

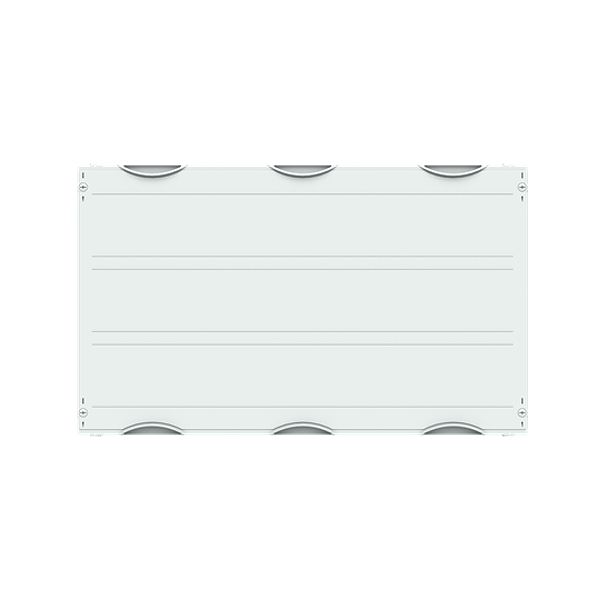

MR303 Busbar Module
Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 60 mm horizontal, Ratchet unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, , usuable width of 665 mm, unequipped for the installation of D0- and NH-fuse switch disconnector or fuse holder element D02, E27, E33, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX146, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617414162 |
Weight: | 3.88 kg |
Length: | 0.45 m |
Width: | 0.75 m |
Height: | 0.26 m |
