Article image 2CPX041407R9999

ABB 2CPX041407R9999

MR202

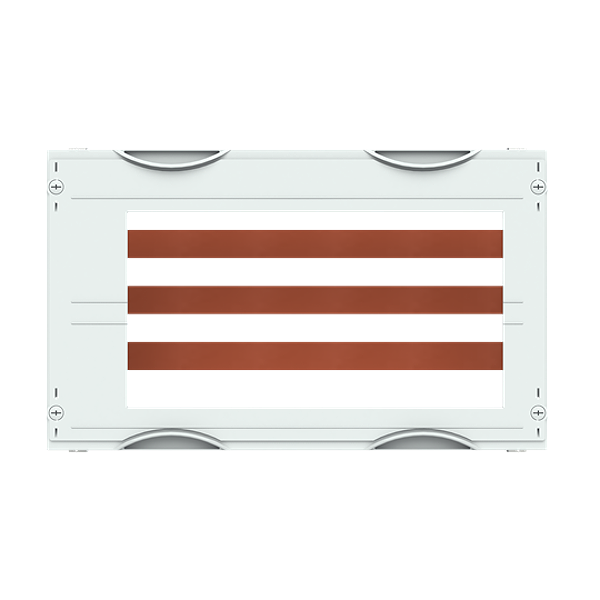

MR202 Busbar Module

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 60 mm horizontal, Ratchet unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, , usuable width of 465 mm, unequipped for the installation of D0- and NH-fuse switch disconnector or fuse holder element D02, E27, E33, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX146, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617414070
Weight: 0.98 kg
Length: 0.30 m
Width: 0.50 m
Height: 0.20 m
