2CPX041385R9999
MA630ALSB

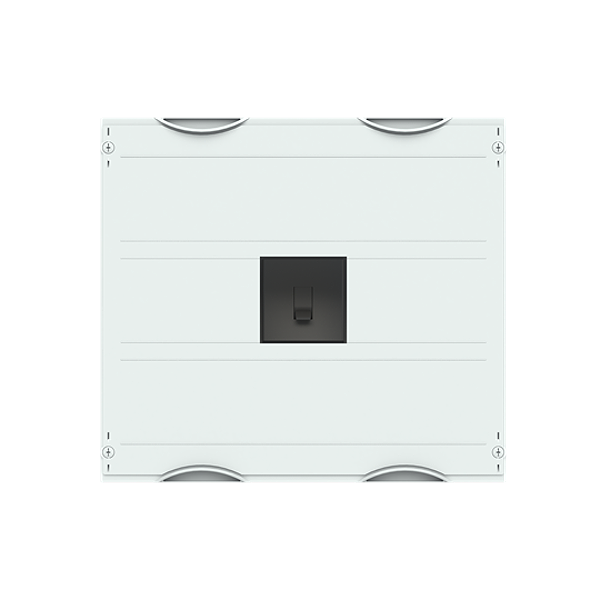

MA630ALSB Circuit-Breaker Module
Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax, Ratchet unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, equipped with 1 MCCB T5 / XT5, Equipment manufacturer: ABB, Tmax XT / T, for busbar system 3-pole, rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 275 mm
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617413851 |
Weight: | 5.57 kg |
Length: | 0.45 m |
Width: | 0.50 m |
Height: | 0.26 m |
