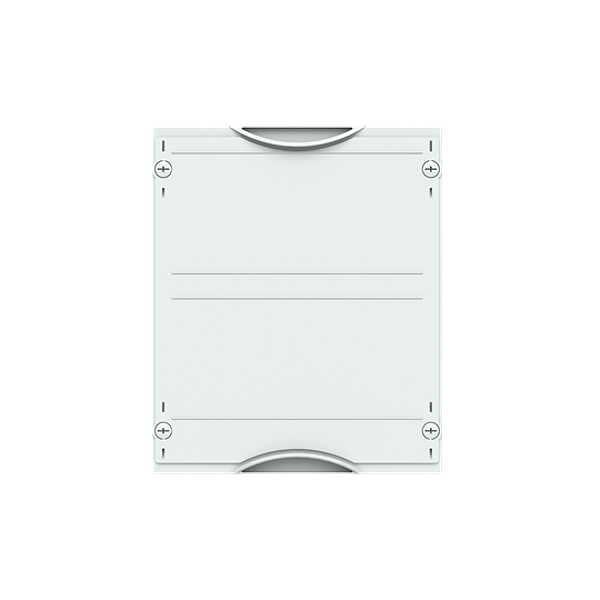

ABB 2CPX041377R9999
MA250ALA
Ma250ALA Switch-Disconn.-Module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Interior fitting module, CombiLine, mounted in cabinet, for Switch disconnector OT not connected, Ratchet unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, unequipped for the installation of 1 NH-switch disconnector OT, for busbar system 3.4-pole, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | 4011617413776 |
| Weight: | 1.39 kg |
| Length: | 0.30 m |
| Width: | 0.25 m |
| Height: | 0.20 m |
