ABB 2CPX041368R9999

ML25

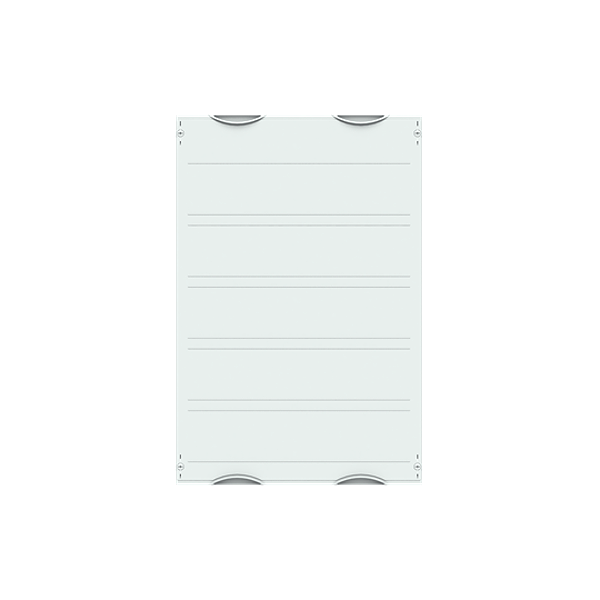

ML25 HRC Switch-Strip Module

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 185 mm NH-switch disconnector, Ratchet unit 5 GU = 750 mm, panel width 2 = 500 mm, 120 Space units, , usuable width of 400 mm, unequipped for the installation of 8 NH-switch disconnector NH1 till NH3, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX523, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 625 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617413684
Weight: 5.10 kg
Length: 0.75 m
Width: 0.50 m
Height: 0.625 m
