Article image 2CPX041327R9999

ABB 2CPX041327R9999

MT245

MT245 Fuse-Disconnec. Module

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

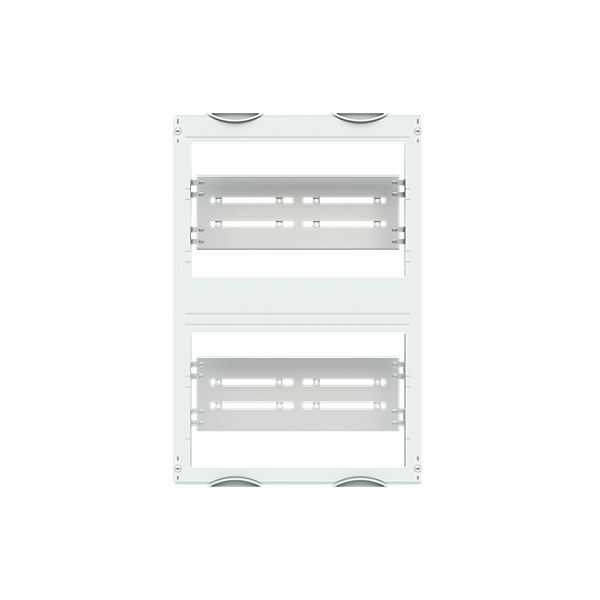

Interior fitting module, CombiLine, mounted in cabinet, for NH2-fuse switch disconnector, Ratchet unit 5 GU = 750 mm, panel width 2 = 500 mm, 120 Space units, unequipped for the installation of 4 NH-fuse disconnector NH2, for busbar system 3-pole, rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617413271
Weight: 4.62 kg
Length: 0.75 m
Width: 0.50 m
Height: 0.225 m
