Article image 2CPX041313R9999

ABB 2CPX041313R9999

MT342

MT342 Fuse-Disconnec. Module

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

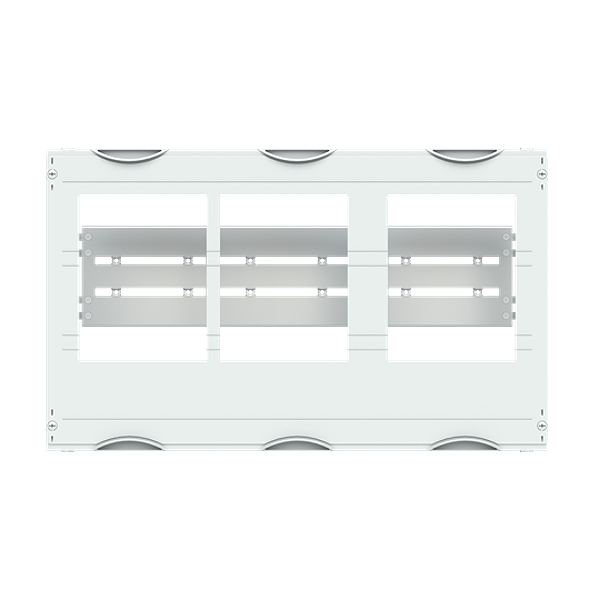

Interior fitting module, CombiLine, mounted in cabinet, for NH1-fuse switch disconnector, Ratchet unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, unequipped for the installation of 3 NH-fuse disconnector NH1, for busbar system 3-pole, rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617413134
Weight: 4.21 kg
Length: 0.45 m
Width: 0.75 m
Height: 0.225 m
