2CPX041307R9999
MT342B

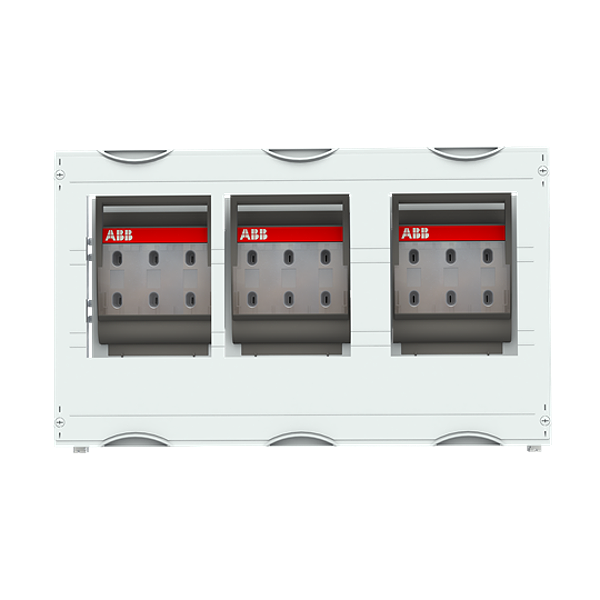

MT342B Fuse-Disconnec. Module
Interior fitting module, CombiLine, mounted in cabinet, for NH1-fuse switch disconnector, Ratchet unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, equipped with 3 NH-fuse disconnector NH1, Equipment manufacturer: ABB, XLP, with busbar system 3-pole, rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617413073 |
Weight: | 15.27 kg |
Length: | 0.45 m |
Width: | 0.75 m |
Height: | 0.225 m |
