Article image 2CPX041299R9999

ABB 2CPX041299R9999

MT136

MT136 Fuse-Disconnec. Module

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

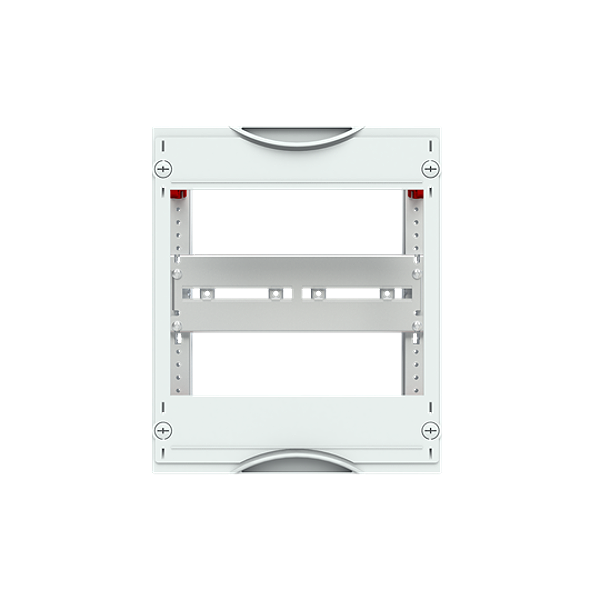

Interior fitting module, CombiLine, mounted in cabinet, for NH00-fuse switch disconnector, Ratchet unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, unequipped for the installation of 2 NH-fuse disconnector NH00, for busbar system 3-pole, rated current maximum 320 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617412991
Weight: 0.78 kg
Length: 0.30 m
Width: 0.25 m
Height: 0.20 m
