2CPX041298R9999
MT337B

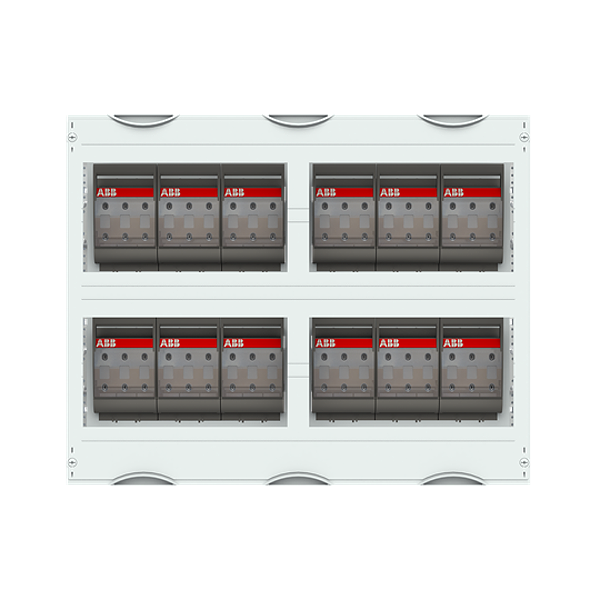

MT337B Fuse-Disconnec. Module
Interior fitting module, CombiLine, mounted in cabinet, for NH00-fuse switch disconnector, Ratchet unit 4 GU = 600 mm, panel width 3 = 750 mm, 144 Space units, equipped with 12 NH-fuse disconnector NH00, Equipment manufacturer: ABB, XLP, with busbar system 3-pole, rated current maximum 320 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617412984 |
Weight: | 19.79 kg |
Length: | 0.60 m |
Width: | 0.75 m |
Height: | 0.20 m |
