Product
ABB
2CPX041297R9999
MT237B
Request a Quote
Image copyright: ABB
ABB 2CPX041297R9999
MT237B

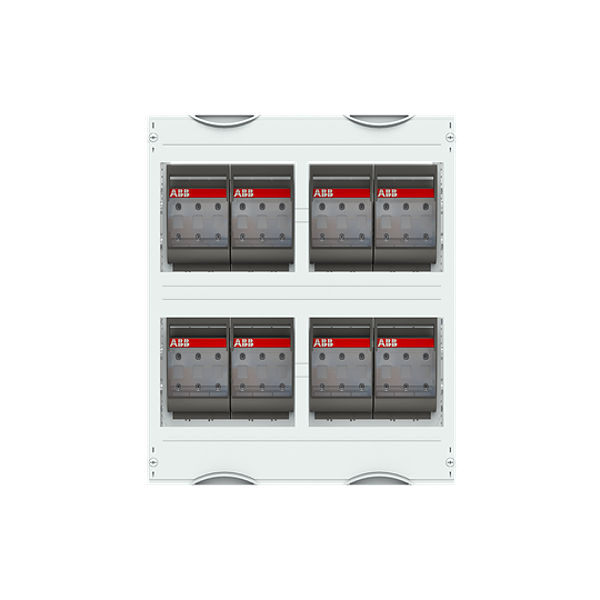

MT237B Fuse-Disconnec. Module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Interior fitting module, CombiLine, mounted in cabinet, for NH00-fuse switch disconnector, Ratchet unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, equipped with 8 NH-fuse disconnector NH00, Equipment manufacturer: ABB, XLP, with busbar system 3-pole, rated current maximum 320 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | 4011617412977 |
| Weight: | 13.18 kg |
| Length: | 0.60 m |
| Width: | 0.50 m |
| Height: | 0.20 m |
