2CPX041294R9999
MT236B

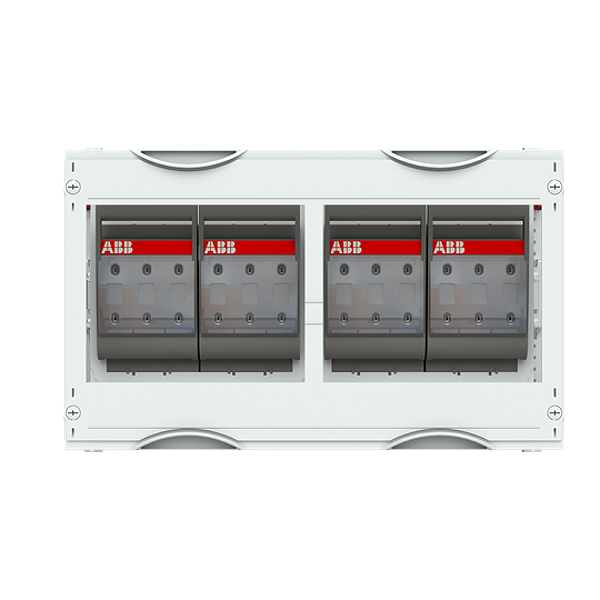

MT236B Fuse-Disconnec. Module
Interior fitting module, CombiLine, mounted in cabinet, for NH00-fuse switch disconnector, Ratchet unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, equipped with 4 NH-fuse disconnector NH00, Equipment manufacturer: ABB, XLP, with busbar system 3-pole, rated current maximum 320 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617412946 |
Weight: | 7.03 kg |
Length: | 0.30 m |
Width: | 0.50 m |
Height: | 0.20 m |
