Article image 2CPX041290R9999

ABB 2CPX041290R9999

MN163

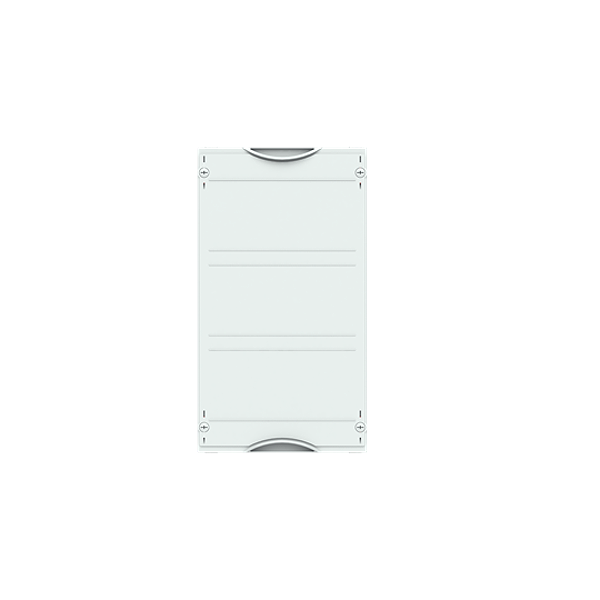

MN163 N+PE-Busbar Module

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting module, CombiLine, mounted in cabinet, for N/PE busbar and terminals, Ratchet unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, Stepless adjustable via mounting bracket, usuable depth of 90 mm up to 145 mm, usuable width of 188 mm, for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX149, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617412908
Weight: 1.85 kg
Length: 0.45 m
Width: 0.25 m
Height: 0.26 m
