Article image 2CPX041285R9999

ABB 2CPX041285R9999

MN275

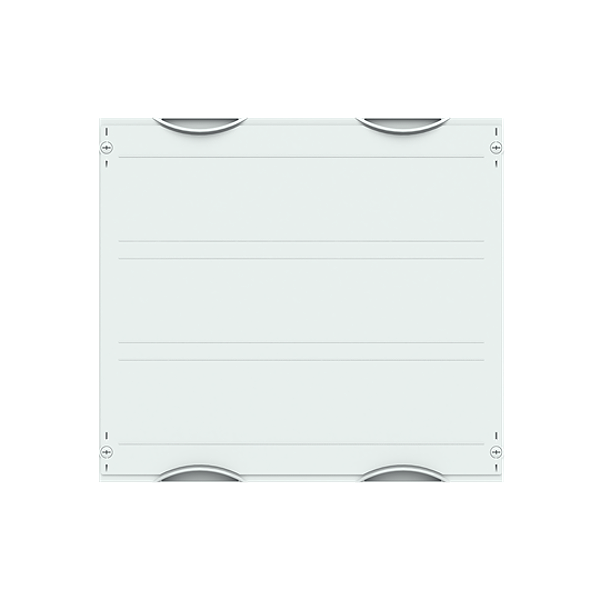

MN275 N+PE-Busbar Module

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting module, CombiLine, mounted in cabinet, for N/PE busbar and terminals, Ratchet unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, Stepless adjustable via mounting bracket, usuable depth of 90 mm up to 145 mm, usuable width of 438 mm, for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX518, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617412854
Weight: 2.16 kg
Length: 0.45 m
Width: 0.50 m
Height: 0.20 m
