2CPX041283R9999
MN374

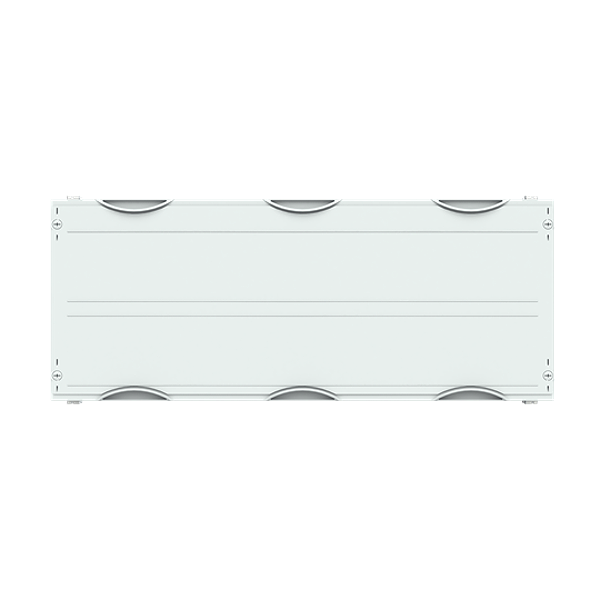

MN374 N+PE-Busbar Module
Interior fitting module, CombiLine, mounted in cabinet, for N/PE busbar and terminals, Ratchet unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units, Stepless adjustable via mounting bracket, usuable depth of 90 mm up to 145 mm, usuable width of 688 mm, for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX518, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617412830 |
Weight: | 2.01 kg |
Length: | 0.30 m |
Width: | 0.75 m |
Height: | 0.20 m |
