Product
ABB
2CPX041280R9999
MS331
Request a Quote
Image copyright: ABB
ABB 2CPX041280R9999
MS331

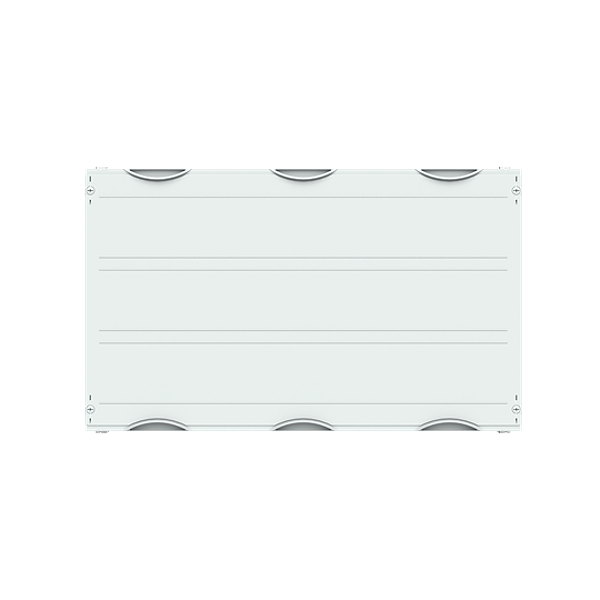

MS331 Busbar Module 850A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Interior fitting module, CombiLine, mounted in cabinet, for Busbar system horizontal, Ratchet unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, unequipped for the installation of , for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX520, Busbar center distance: 100 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | 4011617412809 |
| Weight: | 3.34 kg |
| Length: | 0.45 m |
| Width: | 0.75 m |
| Height: | 0.275 m |
